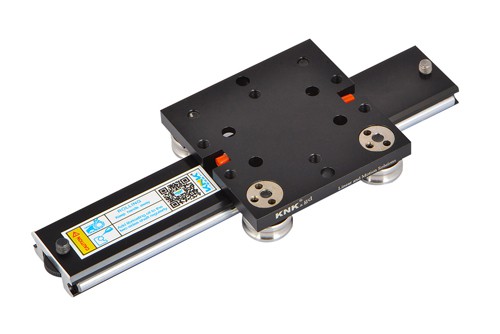

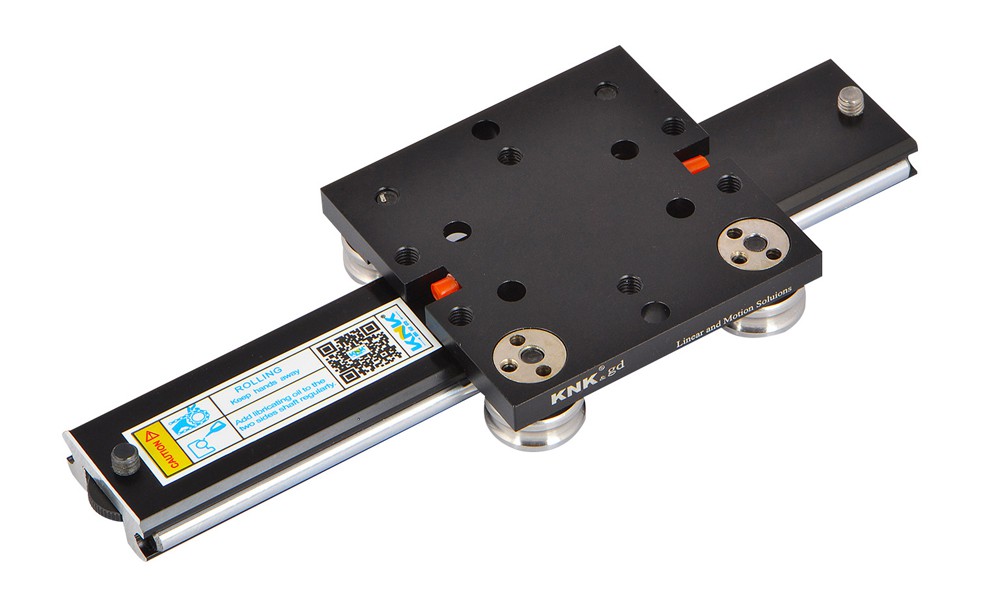

Linear Guide, Roller Type Linear Motion Guide
- Material: Aluminum alloy
- Rail width: 35mm
- Optional Length: 100mm-4000mm
- Sliding block type: 4 / 6,
- Max load of single slider: 50KG
- Straightness/Curvature: ≤0.15/1000mm
The travel length of the linear guides can be customized according to the specific requirements of customers.
The number of sliders are optional, and then you can choose them in the light of the size of the load.
Equipped with four sliders, this series linear guide of KNZ20 features low friction and high motion stability.
PDF down
| KWZ Series | Set | Rail dimensions | Block dimensions | ||||||||||||||||||
| Model | H | W | W1 | H2 | dp | P | D | ml | m | W | H1 | L | B | L1 | S | BL（N） | DT（N-m） | Mb(g/pcs) | |||
| Yo | Zo | Mxo | Myo | Mzo | |||||||||||||||||
| KWZ-10M | 18 | 70 | 35 | 11 | 4 | 60 | 5 | 13 | 6 | 70 | 8 | 80 | 57 | 41 | M6 | 400 | 400 | 28.02 | 30.9 | 31.2 | 130 |
| KWZ-10N | 18 | 85 | 50 | 11 | 4 | 60 | 5 | 13 | 6 | 85 | 8 | 80 | 72 | 41 | M6 | 450 | 420 | 30.6 | 33.9 | 34.5 | 140 |
| KWZ-ZB80 | 22 | 80 | 35 | 14 | 4 | 60 | 6 | 13 | 6 | 85 | 8 | 80 | 48 | 70 | M6 | 510 | 450 | 33.5 | 37 | 38.6 | 160 |
As we all know, some special linear motion system can’t be matched with standard linear guide. Therefore, to meet different requirements of customers and improve the automation productivity, the experienced and professional engineer team of KNK can offer customers high-quality linear motion system, including gantry system, linear module, linear guide and linear bearing.
