Linear Guide, Series KNZ20

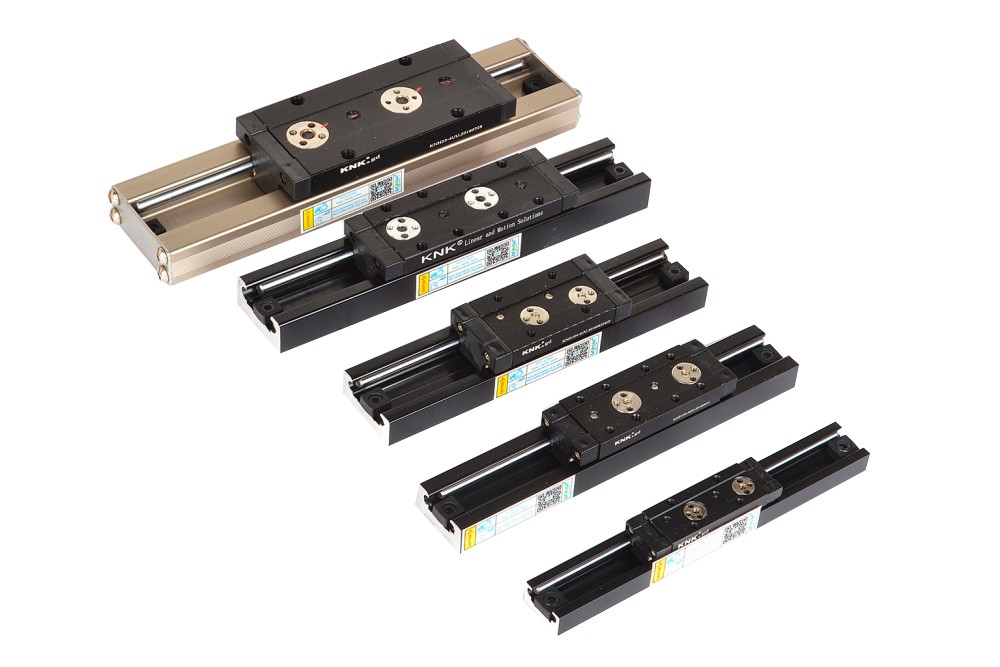

Linear Guide, Roller Type Linear Motion Guide

Specification:

Material: Aluminum alloy
Rail width: 60mm
Optional Length: 100mm-4000mm

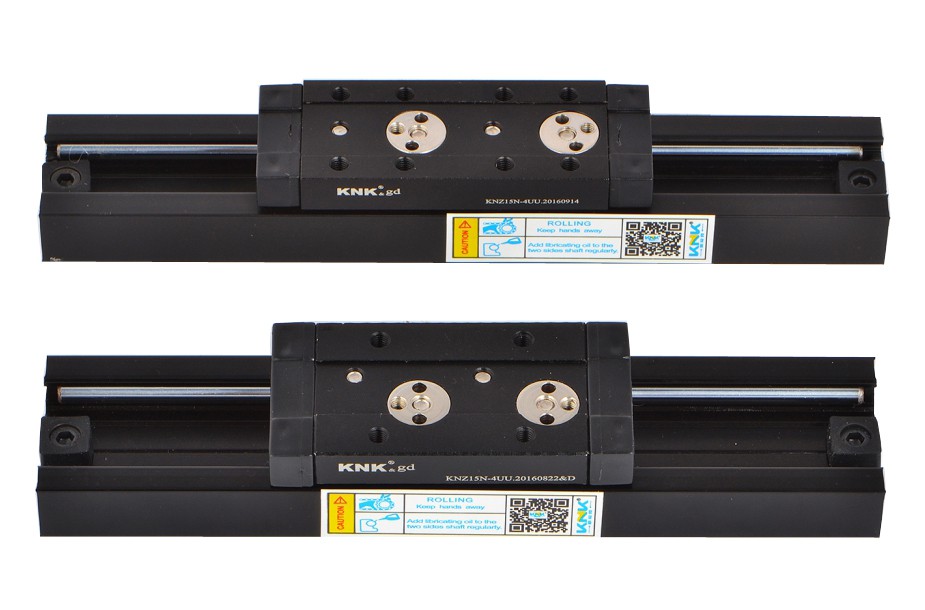

Sliding block type: 3 /4, with self-locking hand-wheel slider
Max load of single slider: 90KG
Straightness/Curvature: ≤0.15/1000mm

The travel length of the linear guides can be customized according to the specific requirements of customers.

The number of sliders are optional, and then you can choose them in the light of the size of the load.

Equipped with four sliders, this series linear guides of KNZ20 features low friction and high motion stability.

PDF down

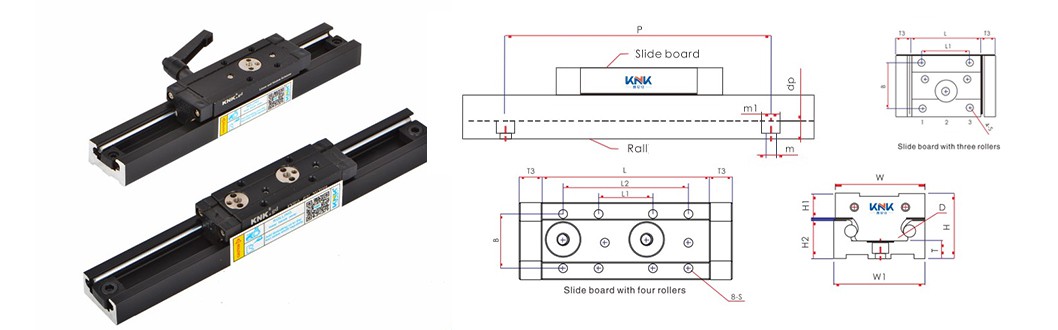

Model	Set KNZ Rail dimensions										KNH Block dimensions
KNZ	H	W1	H2	dp	P	D	Mr g/m	T	ml	m	W	H1	T3	L	B	L1	L2	S	QP	BL（N）		DT（N-m）
																				Yo	Zo	Mxo	Myo	Mzo
10	24	28	14	3.3	60	5	1051	5	6	3.4	26	8	10	47	18.5	18.5		M4	3	343	322	6.4	6.8	7.1
														63		30			4	450	420	10.2	11.3	11.5
15N	32	38	18.5	4.5	120	6	1651	8	8	4.5	37	12	11	60	26	26	60	M5	3	490	460	7.4	7.8	10.2
														80					4	700	660	13.2	14	14.5
15	32	46	18.5	4.5	120	6	1784	8	8	4.5	36	12	11	52	32	36		M5	3	490	460	9.2	9.8	13.8
														68					4	700	660	19.8	21.1	22.4
20N	35.2	46.3	22.5	5.5	120	8	2427	9	9.5	5.5	46	12	11	80	38	30	78	M6	3	820	700	15.4	25.4	29.4
														106					4	1400	1000	42	21.5	61.6
20	36	60	22.5	5.5	120	8	2744	9	9.5	5.5	58	12	12	72	50	40		M6	3	820	700	18.2	52	421
														94					4	1400	1000	44	52	72.8
25	44	69	26	7	120	10	3873	10	10	6.6	68	16	12	100	56	56		M8	3	1470	1260	4158	48.51	67.62
														130	57	75			4	2100	1800	96.6	118.8	138.6
