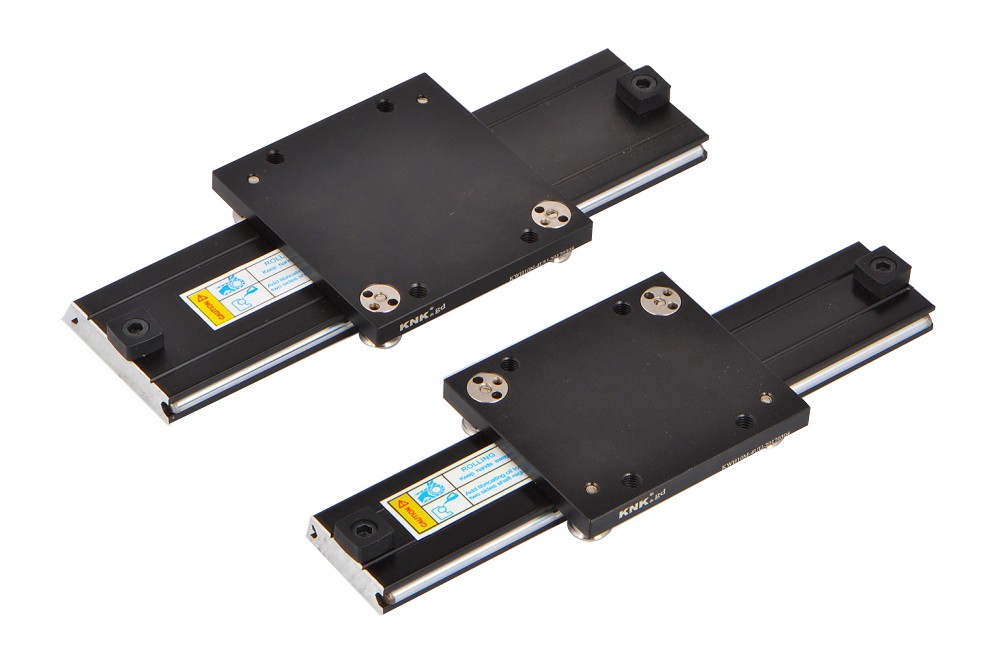

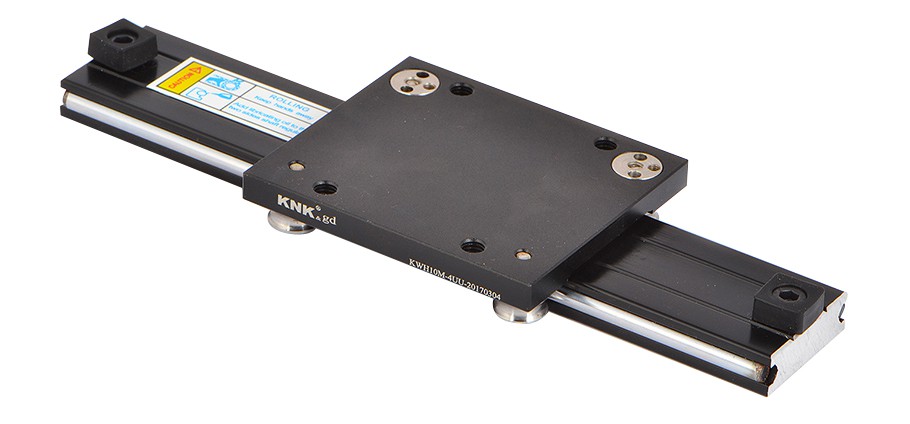

Linear Guide, Series KWZ10M

Linear Guide, Roller Type Linear Motion Guide

Specification:

Material: Aluminum alloy
Rail width: 35mm
Optional Length: 100mm-4000mm

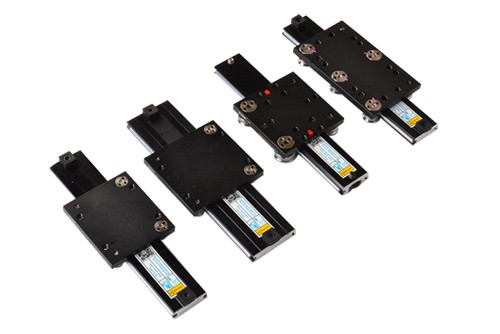

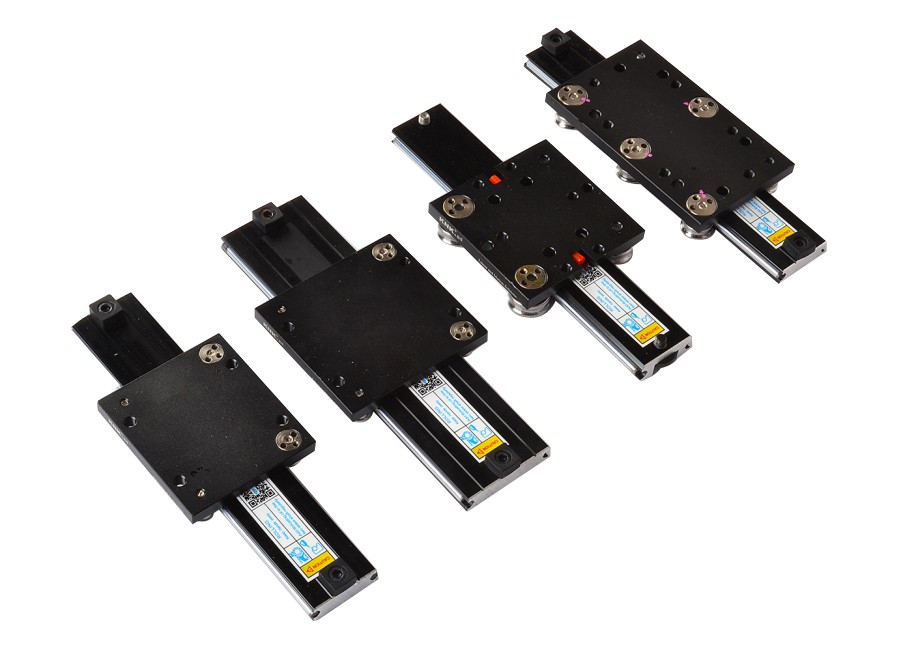

Sliding block type: 4 / 6,
Max load of single slider: 20KG
Straightness/Curvature: ≤0.15/1000mm

PDF down

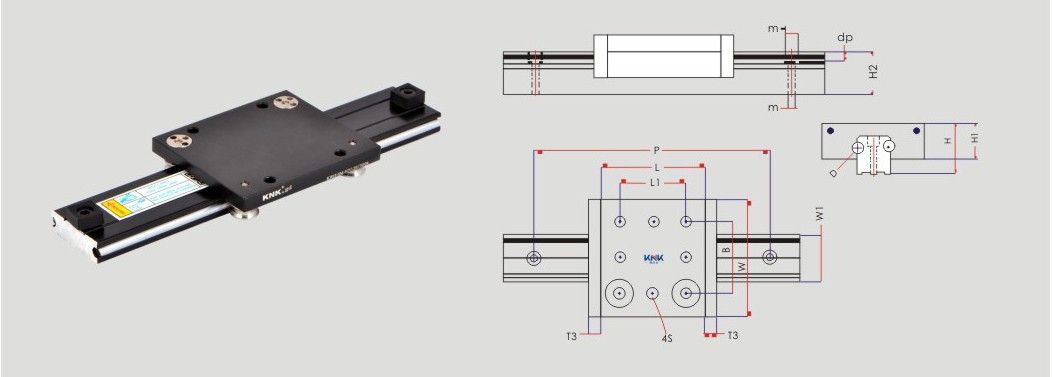

KWZ Series	Set		Rail dimensions							Block dimensions
Model	H	W	W1	H2	dp	P	D	ml	m	W	H1	L	B	L1	S	BL（N）		DT（N-m）			Mb(g/pcs)
Model	H	W	W1	H2	dp	P	D	ml	m	W	H1	L	B	L1	S	Yo	Zo	Mxo	Myo	Mzo	Mb(g/pcs)
KWZ-10M	18	70	35	11	4	60	5	13	6	70	8	80	57	41	M6	400	400	28.02	30.9	31.2	130
KWZ-10N	18	85	50	11	4	60	5	13	6	85	8	80	72	41	M6	450	420	30.6	33.9	34.5	140
KWZ-ZB80	22	80	35	14	4	60	6	13	6	85	8	80	48	70	M6	510	450	33.5	37	38.6	160

Product Detail

Feature

The travel length of the linear guides can be customized according to the specific requirements of customers.

The number of sliders are optional, and then you can choose them in the light of the size of the load.

The series of KNZ15 features light weight and high strength because of the material of aluminum alloy.

Tags

Product List

Solution

As we all know, some special linear motion system can’t be matched with standard linear guide. Therefore, to meet different requirements of customers and improve the automation productivity, the experienced and professional engineer team of KNK can offer customers high-quality linear motion system, including gantry system, linear module, linear guide and linear bearing.
