YY' Gantry, Linear Motion Gantry Robot

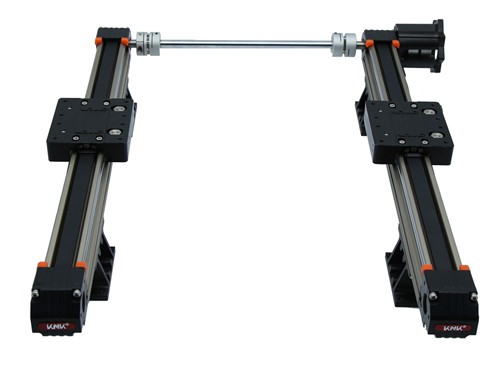

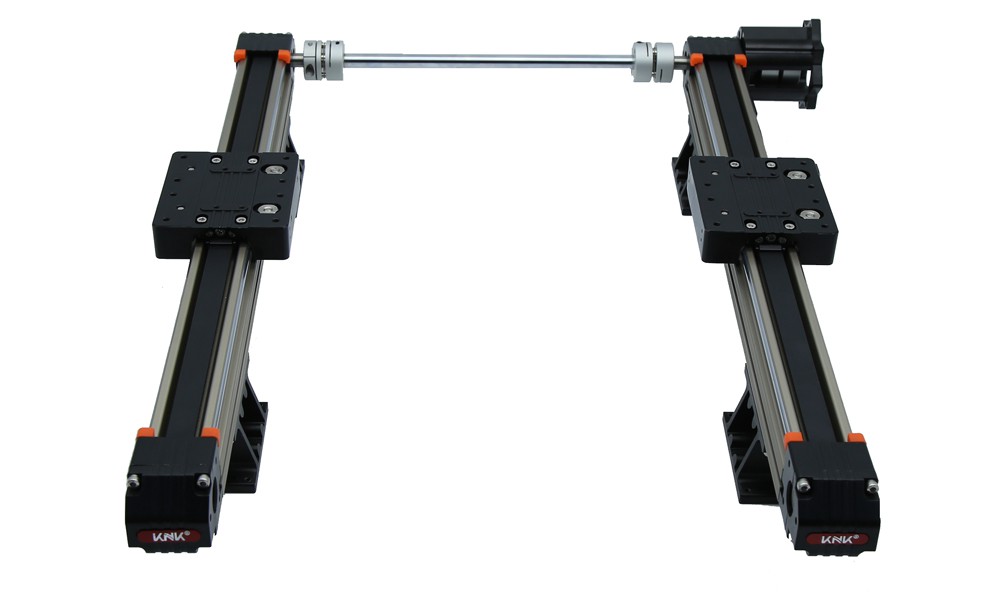

YY' Gantry
  • YY' Gantry
  • YY' Gantry

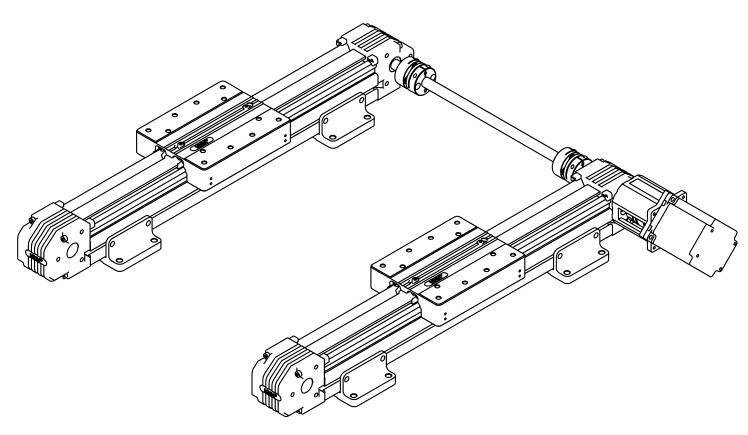

    • Compared with single axis drive, YY' gantry is suitable for large volume loads and make it move stably. Moreover, the distance between two Y-axis travels can be customized.

    Specification:
    • Optional rail width: 40/45/50/60/80mm
    • Length: 300mm-4000mm
    • Straightness/Curvature: ≤0.03/300mm
    • Load: ≤35KG
    • Repeat accuracy: ≤0.1 mm
    • Effective travel length: 75/95/105/125/180mm
    • Optional synchronous belt specification: HTD 3M, W15mm; STD 5M, W20mm; STD 5M, W30mm
    Accessories:
    • Single-axis linear module * 2;
    • Link shaft assembly * 3;
    • Transmission shaft * 1;
    • Motor mounting bracket * 1;
    • Electrical proximity switches * 3;
    • Structural frame * 4.
    Solution

    As we all know, some special linear motion system can’t be matched with standard linear guide. Therefore, to meet different requirements of customers and improve the automation productivity, the experienced and professional engineer team of KNK can offer customers high-quality linear motion system, including gantry system, linear module, linear guide and linear bearing.
