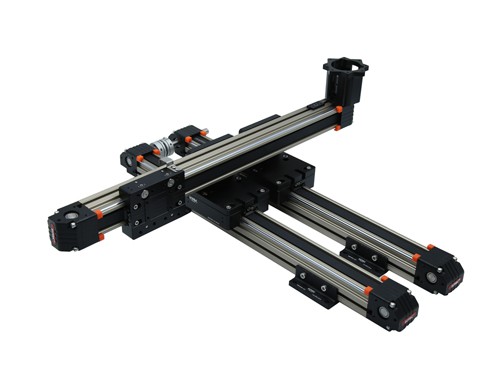

Gantry System, 2 Axis X-YY'
Gantry system, 2 axis X-YY' can achieve the smooth motion in XY two-dimension. This kind of gantry system has larger support force because it has two Y-axis in parallel. The X-axis stands on side and it is good for the fixation of motion module in the Z-direction. This kind of 2 axis X-YY’ gantry system, looking like a cantilever, can satisfies the requirements of some special applications.
Specification:- Optional rail width: 40/45/50/60/80mm
- Length: 300mm-4000mm
- Straightness/Curvature: ≤0.03/300mm
- Load: ≤35KG
- Repeat accuracy: ≤0.1 mm
- Effective travel length: 75/95/105/125/180mm
- Optional synchronous belt specification: HTD 3M, W15mm; STD 5M, W20mm; STD 5M, W30mm
- Single-axis linear module * 3;
- Link shaft assembly * 3;
- Motor mounting bracket * 2;
- Structural frame * 4;
- Electrical proximity switches * 6;
- Mounting plate * 1.
As we all know, some special linear motion system can’t be matched with standard linear guide. Therefore, to meet different requirements of customers and improve the automation productivity, the experienced and professional engineer team of KNK can offer customers high-quality linear motion system, including gantry system, linear module, linear guide and linear bearing.
