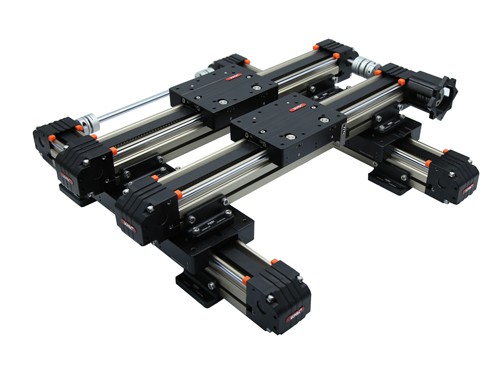

Gantry System, 2 Axis XX'-YY'

Gantry system, 2 axis XX'-YY' can achieve the smooth motion in XY two-dimension. On one hand, this kind of gantry system has larger support force because it has two Y-axis in parallel. On the other hand, it has larger fixed area of the load due to its double horizontal X-axis. It is needed by some special applications.

• Optional rail width: 40/45/50/60/80mm
• Length: 300mm∽4000mm
• Straightness/Curvature: ≤0.03/300mm
• Load: ≤35KG
• Repeat accuracy: ≤0.1 mm
• Effective travel length: 75/95/105/125/180mm
• Optional synchronous belt specification: HTD 3M, W15mm; STD 5M, W20mm; STD 5M, W30mm

• Single-axis linear module *4;
• Link shaft assembly *5;
• Motor mounting bracket *1;
• Structural frame *4;
• Electrical proximity switches *6;
• Mounting plate *2;
• Transmission shaft *2.
