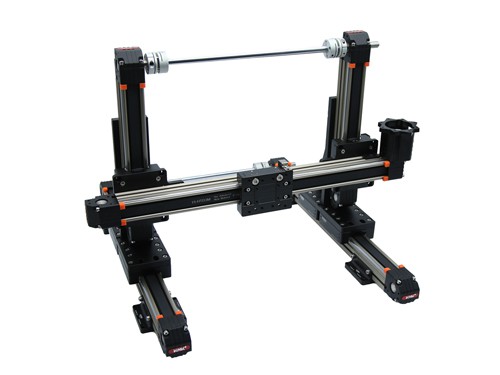

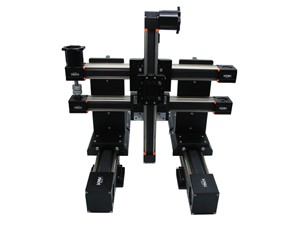

Gantry Robot System, 3 Axis X-YY'-ZZ'

Gantry Robot System, 3 Axis X-YY'-ZZ'
  • Gantry Robot System, 3 Axis X-YY'-ZZ'
  • Gantry Robot System, 3 Axis X-YY'-ZZ'
    • Application:
    • Dispensing machine
    • 3D printer
    • Packing machine
    • Testing machine
    Specification:
    • Optional rail width: 40/45/50/60/80mm
    • Length: 300mm-4000mm
    • Straightness/Curvature: ≤0.03/300mm
    • Load: ≤35KG
    • Repeat accuracy: ≤0.1 mm
    • Effective travel length: 75/95/105/125/180mm
    • Optional synchronous belt
    • specification: HTD 3M, W15mm; STD 5M, W20mm; STD 5M, W30mm
    Accessories:
    • Single-axis linear module * 5;
    • Link shaft assembly * 7;
    • Motor mounting bracket * 3;
    • Structural frame * 4;
    • Electrical proximity switches * 9.
    Solution

    As we all know, some special linear motion system can’t be matched with standard linear guide. Therefore, to meet different requirements of customers and improve the automation productivity, the experienced and professional engineer team of KNK can offer customers high-quality linear motion system, including gantry system, linear module, linear guide and linear bearing.
